bracket-series



Pole Mount Adaptor Bracket A-BK4

Models A-BK4
Color Off-White (RAL9002)
Dia of Adaptable Pole 38mm〜50.8mm (1.5"〜2")
Max Wind Load Our product will not be destroyed
by maximum 50m/sec(167ft/sec) wind load.
Material Aluminum
Weight 0.6kg(1.3lbs) including U-Bolt and other bolts and washers.
Paint Powder Coat
Standard
Accessories
5-16 Stainless (SUS304) U-Bolt for 1 1/2" NPT size x 2
3/8" Stainless (SUS304) Screw / Spring / Washer x 4
Standard & Compliance RoHS

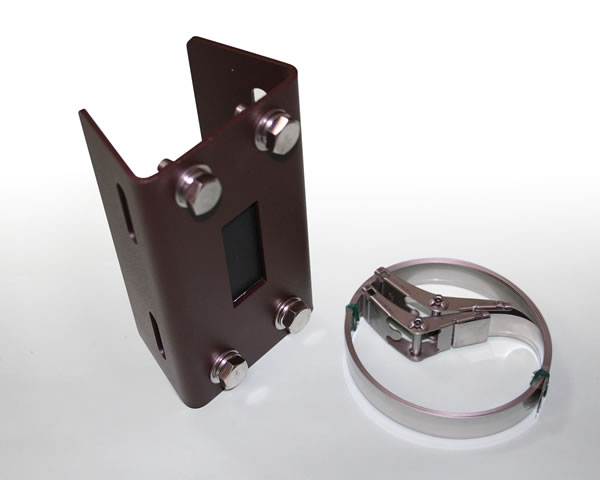

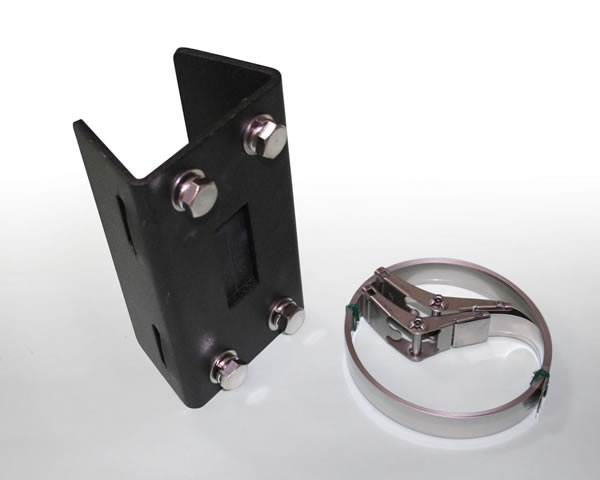

Pole Mount Adaptor Bracket A-BK3/A-BK3S
A-BK3 A-BK3(OW) A-BK3(DB)
Black Off-White Dark Brown
Dia of Adaptable Pole 80mm〜400mm(4"〜15.7")
Max Wind Load Our product will not be destroyed
by maximum 50m/sec(167ft/sec) wind load.
Material Aluminum Stainless(SUS304)
Models A-BK3 A-BK3S Standard Black
A-BK3(OW)  A-BK3S(OW) Off-White (RAL9002)
A-BK3(DB) A-BK3S(DB) Dark Brown
(Munsell 5YR2/1.5 Similar)
Weight 0.6kgs(1.4lbs) 1kgs(2.2lbs)
Paint Powder Coat
Standard
Accessories
20mm(0.787")x1500mm(59")Stainless Belt x 2(No Special Tool Necessary)
3/8" Stainless(SUS304) Screw/Spring/Washer x 4
Standard & Compliance RoHS

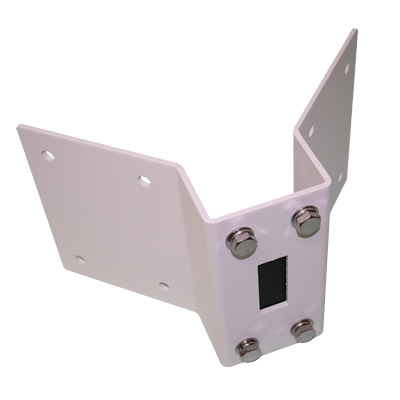

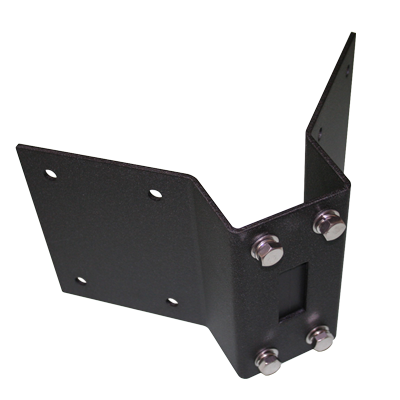

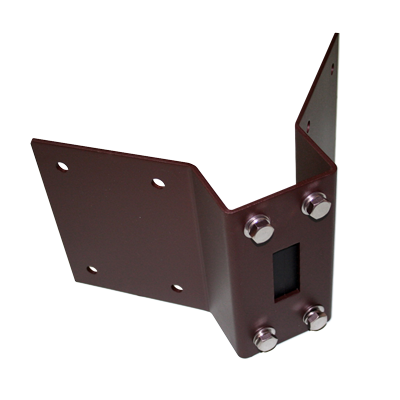

Corner Mount Bracket A-CM3
A-CM3 A-CM3(OW) A-CM3(DB)
Black Off-White Dark Brown
Dia of Adaptable Pole 100mm〜400mm(4"〜15.7")
Max Wind Load Our product will not be destroyed
by maximum 50m/sec(167ft/sec) wind load.
Material Aluminum Stainless(SUS304)
Models A-BK3 A-BK3S Standard Black
A-BK3(OW)  A-BK3S(OW) Off-White (RAL9002)
A-BK3(DB) A-BK3S(DB) Dark Brown
(Munsell 5YR2/1.5 Similar)
Weight 0.6kgs(1.4lbs) 1kgs(2.2lbs)
Paint Powder Coat
Standard
Accessories
20mm(0.787")x1500mm(59")Stainless Belt x 2(No Special Tool Necessary)
3/8" Stainless(SUS304) Screw/Spring/Washer x 4
Standard & Compliance RoHS


Ceiling Mount Brackets for 1 1/2"NPT Pipe





Ceiing Mount Adaptor for
1 1/2"NPT Pipe

(Female threaded)
Model A-CM100NPT
Color Off-White(RAL9002)
Material Steel
Paint: Powder Coat Finish
Weight Approx.1.7lbs(750g)
Thickness of Flange 6.5mm(0.256")
Standard &Compliance RoHS
Specifications PDF
Dimension Drawing DXF

1 1/2"NPT Pipe Accesories Series
  Pipe Coupling
Model A-PIPE1F A-PIPE3F A-JC3INCH

Length 300mm(12") 900mm(36") 73mm(2.88")
Color Off-White(RAL9002)
Material Steel
Paint Powder Coat Finish
Threaded
length
31mm(1.21") x 2 ends
Weight 1.1kgs
(2.43lbs)
3.3kgs
(7.29lbs)
0.5kgs
(1.1lbs)
Standard & Compliance RoHS
Specifications PDF PDF
Dimension
Drawing
DXF DXF DXF

Coupling for 1 1/2"NPT Pipe
(Female threaded)

It joints our Outdoor Dome Housing to
1 1/2"NPT Pipe.
Model A-CP100NPT
Usable Pipe 1 1/2"NPT
Color Off-White(RAL9002)
Material Steel
Weight 0.41kgs(0.9lbs)
Standard & Compliance RoHS
Specifications PDF
Dimension Drawing DXF
