bracket-series




  Capsule is made of 0.118" (3mm) thickness Polycarbonate.
  Optional Vandal Resistant Screw (7pcs.) & Tool (1unit) Set A-VSM4TL is available.
  IP66
  Optional 24VAC Blower and 25Watts Heater and Optional DC12V Blower and 25Watts Heater are available.
(We are using same 24VAC Blower and Heater as A-SWD5 Surfacewedge Housing.)

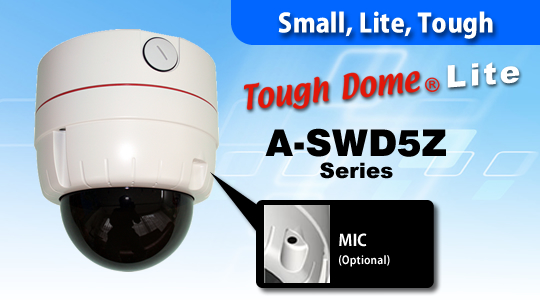

  Optional Microphone with 3.5mini-jack connector w/o Amplifier.
  You can install it outdoor by using Optional Wall Bracket A-SWD5ZWB.
You can use Same Pole Mount Adaptor A-BK3 series for Wall Bracket A-SWD5ZWB.


Housing

Housing &
Wall Mount Bracket
(A-SWD5ZWB)

Housing & Camera Chart

Optional Items

A-SWD5ZWB Wall Mount Bracket



A-SWD5WB2(W)

Universal Wall Mount Bracket^"WHITE"@Version

(for A-SWD5Z,A-SWD5V and A-SWD5VX)

A-SWD5WB2iBj

Universal Wall Mount Bracket^hBLACKh@Version

(for A-SWD5Z,A-SWD5V and A-SWD5VX)


A-SWD5CA2(W)

Universal Ceiling Mount Bracket

(for A-SWD5Z,A-SWD5V and A-SWD5VX)


A-SW1000L Safety Wire

You can use it for Wall Bracket Model A-SWD5ZWB.
Length Approx. 1000mm(39")


A-SWD5ZBH2
A-SWD5ZBH12
24VAC Blower and 25Watts Heater:
12VDC Blower and 25Watts Heater:
Controlled by thermostat automatically.
See Insturction Manual of A-SWD5 which is using the same blower and heater as A-SWD5V.

A-SWD5ZM Condenser Microphone Unit
Note 1: You must order Mirophone Unit together with Housing Unit.
You cannot install it later by yourself.

(Replacement service can be done by yourself.)
Note 2: You may have diifiulty in hearing sound when blower is on.
(You may reduce noise by adjusting Camera's volume at lower level.)
Note 3: We are unable to take any responsibilities for any troubles such as infringement of privacy.? Installer's discretion is advised.? Installer is requested to abide by local law.
Note 4: You cannot use Mirophone Unit where high pressure water hits Microphone Unit directly.
(You cannot use High Pressure Washer to clean Housing Unit.)

A-BK3 Pole Mount Adaptor (Aluminum)
A-BK3S Pole Mount Adaptor (Stainless(SUS304))
You can use the same Pole Mount Adaptor A-BK3 series
for Wall Bracket A-SWD5ZWB.

A-CM3 Corner Mount Adaptor
You can use the same Corner Mount Adaptor A-CM3 series
for Wall Bracket A-SWD5ZWB.

A-VSM4TL Vandal Resitant Screw & Tool Set

Consists of 7 pcs. of Vandal Resistant M4 Screws and 1 pc. Of Tool.


A-RCP5VC Replacement Capsule Clear Capsule


A-RCP5VT Replacement Capsule Tinted Capsule
