bracket-series

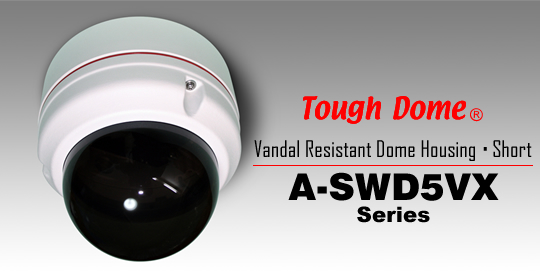

A-SWD5VXC A-SWD5VXT
Clear Tinted
  Capsule is made of 0.118" (3mm) thickness Polycarbonate and Body is made of Cast Aluminum.
  Optional Vandal Resistant Screw (7pcs.) & Tool (1unit) Set A-VSM4TL is available.
  You can use 3/4"NPT Pipe for ceiling mount as well as wiring.
  IP66
  Optional 24VAC Blower and 25Watts Heater is available.
(Note: Due to limited space of this housing, you cannot use Optional 24VAC
Blower and Heater, e.g. Panasonic BB-HCM580 and BB-HCM581.)
(Photo: Ceiling Mount by 3/4"NPT Pipe.)
Note: 3/4"Pipe is not provided nor selling it.


Housing & Camera Chart



Optional Items

A-SWD5ZWB Wall Mount Bracket



A-SWD5WB2(W)

Universal Wall Mount Bracket^"WHITE"@Version

(for A-SWD5Z,A-SWD5V and A-SWD5VX)

A-SWD5WB2iBj

Universal Wall Mount Bracket^hBLACKh@Version

(for A-SWD5Z,A-SWD5V and A-SWD5VX)


A-SWD5CA2(W)

Universal Ceiling Mount Bracket

(for A-SWD5Z,A-SWD5V and A-SWD5VX)


A-SW1000L Safety Wire

You can use it for Wall Bracket Model A-SWD5ZWB.
Length Approx. 1000mm(39")


A-SWD5VXBH2 24VAC Blower & 25Watts Heater
Controlled by thermostat automatically.

(Note: Due to limited space of this housing, you cannot use Optional 24VAC Blower and Heater, e.g. Panasonic BB-HCM580,
BB-HCM581 and DG-NS202A.)

A-BK3
A-BK3S
Pole Mount Adaptor (Aluminum)
Pole Mount Adaptor (Stainless(SUS304))
You can use the same Pole Mount Adaptor A-BK3 series
for Wall Bracket A-SWD5ZWB.

A-CM3 Corner Mount Adaptor
You can use the same Corner Mount Adaptor A-CM3 series
for Wall Bracket A-SWD5ZWB.

A-VSM4TL
Vandal Resitant Screw & Tool Set
Consists of 7 pcs. of Vandal Resistant M4 Screws and 1 pc. Of Tool.

A-RCP5VC Replacement Capsule Clear Capsule


A-RCP5VT Replacement Capsule Tinted Capsule
