bracket-series

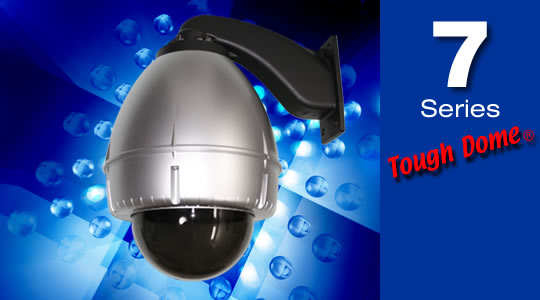

Tough Dome is made of 0.126h(3.2mm) thickness Polycarbonate(UL94 V-0) which is strong against any vandalisim.
Optional Microphone Unit(Splash Proof) is available.(As regards microphone, please check local law before installation.

You are requested to abide by the local law and privacy as regards use of microphone.
We are free from any claim for use of microphone.


A-ODW7 7" WWall Mount W Type

A-ODW7 C1 (Clear 24VAC Blower&Heater)
A-ODW7 C12 (Clear 12VDC Blower&Heater)
A-ODW7 T‚Q (Tinted 24VAC Blower&Heater)
A-ODW7 T12 (Tinted 12VDC Blower&Heater)
A-ODW7 (OW) A-ODW7 (DB)

A-ODW7 A 7h(A-GW10 bracket) Pendant Wall Mount "A" Type

A-ODW7 C2 (Clear 24VAC Blower&Heater)
A-ODW7 C12 (Clear 12VDC Blower&Heater)
A-ODW7 T2 (Tinted 24VAC Blower&Heater)
A-ODW7 T12 (Tinted 12VDC Blower&Heater)
A-ODW7 A(OW) A-ODW7 A(DB)

A-ODW7 B 7"(A-CM100 bracket) Pendant Ceiling Mount "B" Type

A-ODW7 C2B (Clear 24VAC Blower&Heater)
A-ODW7 C12B (Clear 12VDC Blower&Heater)
A-ODW7 T2B (Tinted 24VAC Blower&Heater)
A-ODW7 T12B (Tinted 12VDC Blower&Heater)
A-ODW7 B(OW) A-ODW7 B(DB)

A-ODW7 C 7"(A-CM260 bracket) Pendant Ceiling Mount "C" Type

A-ODW7 C2C (Clear 24VAC Blower&Heater)
A-ODW7 C12C (Clear 12VDC Blower&Heater)
A-ODW7 T2C (Tinted 24VAC Blower&Heater)
A-ODW7 T12C (Tinted 12VDC Blower&Heater)
A-ODW7 C(OW) A-ODW7 C(DB)
Note: In case of C-Type Bracket(A-CM260), Color of Bracket will be "White" regardless of color of housing body.

A-ODW7 D 7" Pendant Ceiling Mount "D" Type


A-ODW7 E 7" Pendant Ceiling Mount "E" Type

Ceiling Mount Brackets
for 1 1/2"NPT Pipe


Otional Items

A-BK3
Pole Mount Adaptor Bracket.		 A-CM3
Corner Mount Bracket		 A-CM4
Corner Mount Bracket

A-RCP7C
Replacement Capsule Clear Capsule		 A-RCP7T
Replacement Capsule Tinted Capsule
