New Small Outdoor ToughDome Housing A-ODW7 X Series will be released in April 2009. Like conventional A-ODW7 and A-SWD5V ToughDome series, Capsule is made of 3.2mm(0.126") thickness Polycarbonate which is strong against vandalism.

Housing cannot be opened by use of optional Vandal Resistant Key & Tool Set A-VSM4TL..

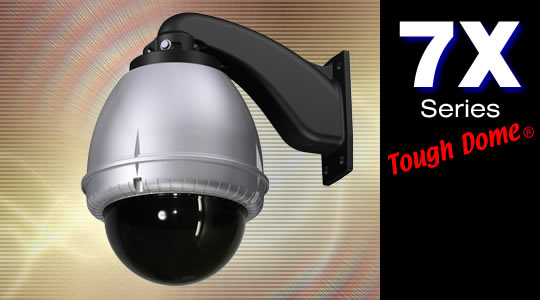

A-ODW7 X 7" WWall Mount W Type
A-ODW7 XC2 (Clear 24VAC Blower&Heater)
A-ODW7 XC12 (Clear 12VDC Blower&Heater)
A-ODW7 XT2 (Tinted 24VAC Blower&Heater)
A-ODW7 XT12 (Tinted 12VDC Blower&Heater)
A-ODW7 X(OW) A-ODW7 X(DB)

A-ODW7 XA 7" (A-GW10 bracket) Pendant Wall Mount "A" Type
A-ODW7 XC2A (Clear 24VAC Blower&Heater)
A-ODW7 XC12A (Clear 12VDC Blower&Heater)
A-ODW7 XT2A (Tinted 24VAC Blower&Heater)
A-ODW7 XT12A (Tinted 12VDC Blower&Heater)
A-ODW7 XA(OW) A-ODW7 XA(DB)

A-ODW7 XB 7" (A-CM100 bracket) Pendant Ceiling Mount "B" Type
A-ODW7 XC2B (Clear 24VAC Blower&Heater)
A-ODW7 XC12B (Clear 12VDC Blower&Heater)
A-ODW7 XT2B (Tinted 24VAC Blower&Heater)
A-ODW7 XT12B (Tinted 12VDC Blower&Heater)
A-ODW7 XB(OW) A-ODW7 XB(DB)

A-ODW7 XC 7" (A-CM260 bracket) Pendant Ceiling Mount "C" Type
A-ODW7 XC2C (Clear 24VAC Blower&Heater)
A-ODW7 XC12C (Clear 12VDC Blower&Heater)
A-ODW7 XT2C (Tinted 24VAC Blower&Heater)
A-ODW7 XT12C (Tinted 12VDC Blower&Heater)
A-ODW7 XC(OW) A-ODW7 XC(DB)
Note: In case of C-Type Bracket(A-CM260), Color of Bracket will be "White" regardless of color of housing body.

A-ODW7 XD 7" Pendant Ceiling Mount "D" Type

A-ODW7 XE 7" Pendant Ceiling Mount "E" Type
Ceiling Mount Brackets
for 1 1/2"NPT Pipe


Otional Items

A-BK3
Pole Mount Adaptor Bracket.
A-CM3
Corner Mount Bracket
A-CM4
Corner Mount Bracket

A-SW1000L
Safety Wire for Ceiling
Mount Housing Type BCDE

Length: Approx. 1000mm=39"
You can install Safety Wire on top of Ceiling Mount Housing to prevent it from dropping.

* In case of Wall Mount Type W and A, this safety wire is already included as standard accessory.
* Model A-SW1000L does not include upper housing unit(Safety wire only).


A-RCP7C
Replacement Capsule Clear Capsule
A-RCP7T
Replacement Capsule Tinted Capsule
