Examples 1 Can we supply enough power to both camera and housing as well as data for camera by one ethernet cable?
2 Can we use PoE Plus(Powerful Heater) for camera housing in extreme cold area?
3 Can we complete installation of camera housing easily by one ethernet cable under severe working conditions?
4 Can we use the existing coaxial cable for renewal into network camera system?
5 Due to outdoor-use, there is no place to install Switch or Extender for ethernet cable.
6 Can we transmit data 6,561ft(2km) by one coaxial cable without any switch?
7 Can we install camera and coax converter in small size camera housing?

  4 Yes, you can easily replace analog camera system with network camera system by using the existing coaxial cable.
(See Solution 1.2.3.)

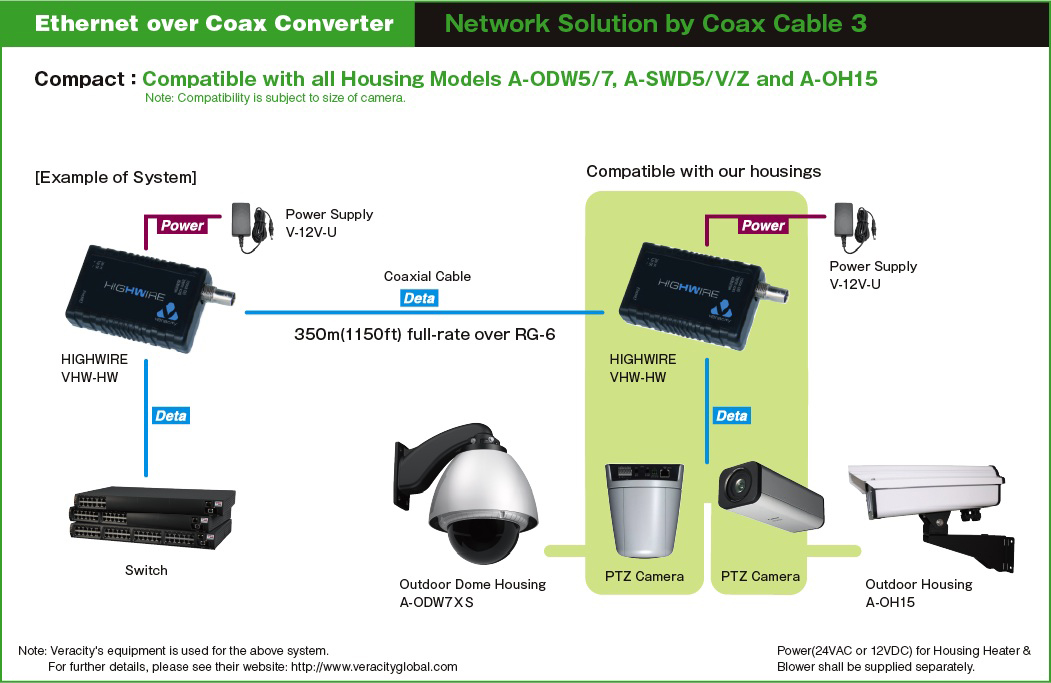

5 Unlike ethenet cable, coax converter easily solves distance issues.
(See Solution 1.2.3.)

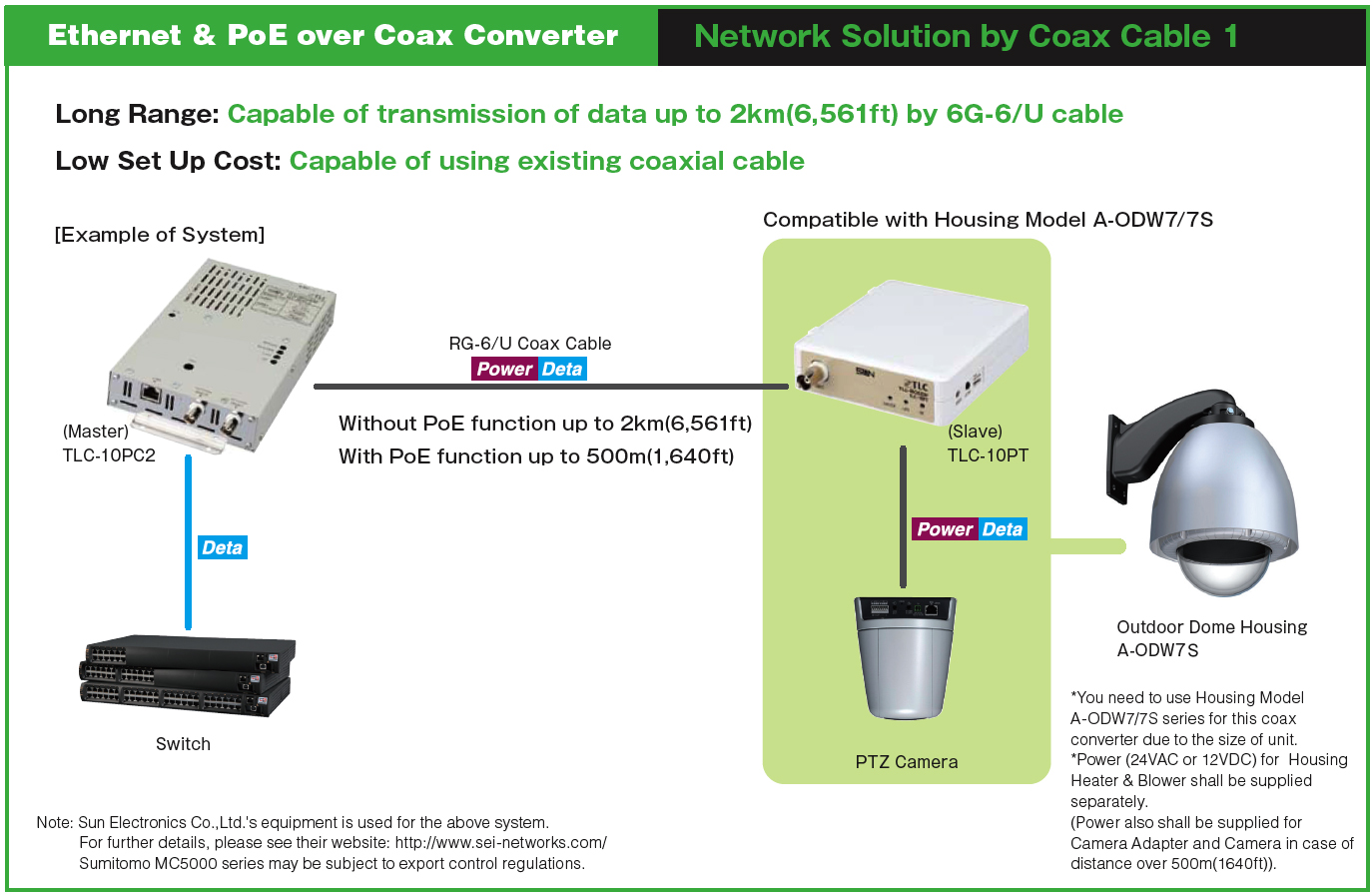

6 Yes, SUN Electronics CO.,LTD TLC Series can transmit data up to 6,561ft(2km) by
(See Solution 1.)

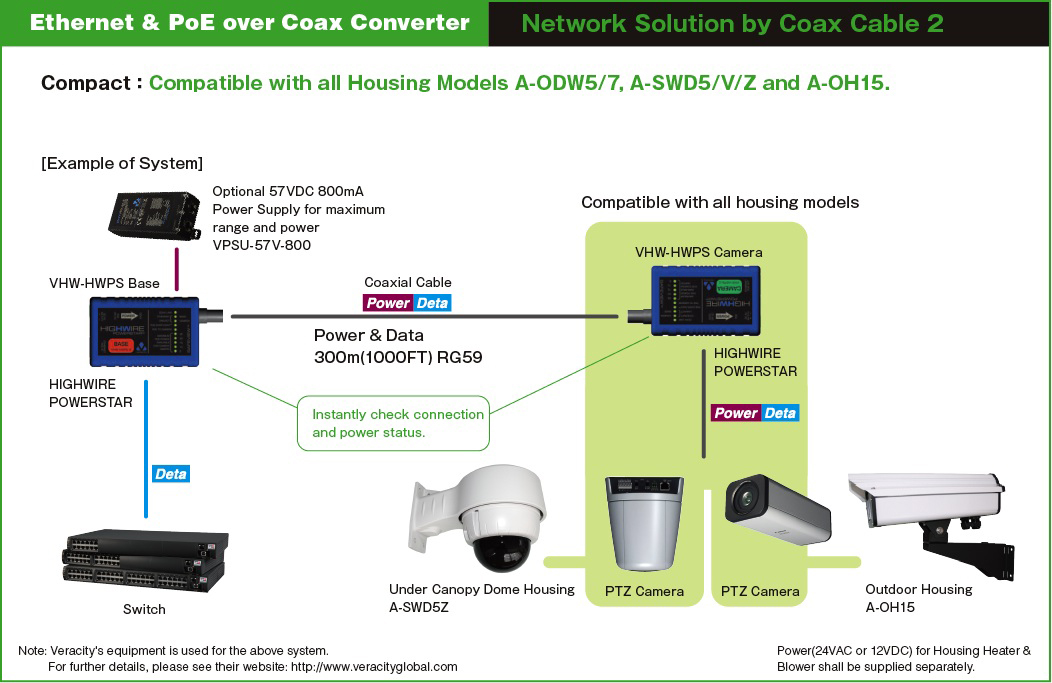

  7 Yes, Veracity's Highwire Powerstar is compact in size and it does not require power supply owing to PoE Plus, thus it enables our small size housing such as Model A-OH15 series to accept most of your cameras.
(See Solution 2)


SUN Electronics CO.,LTD >>

TLC1500 Series

PoE-TLC Series

Veracity@จ
Veracity@จ
