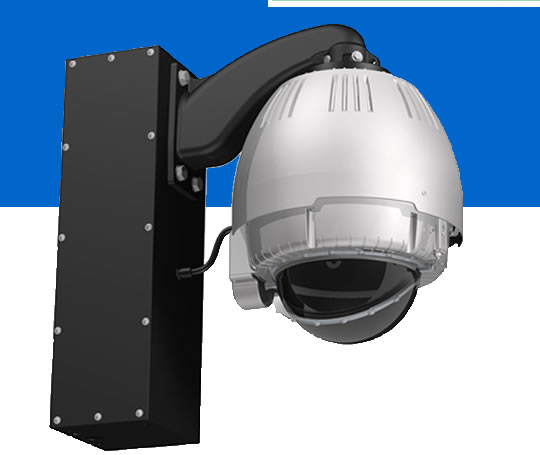

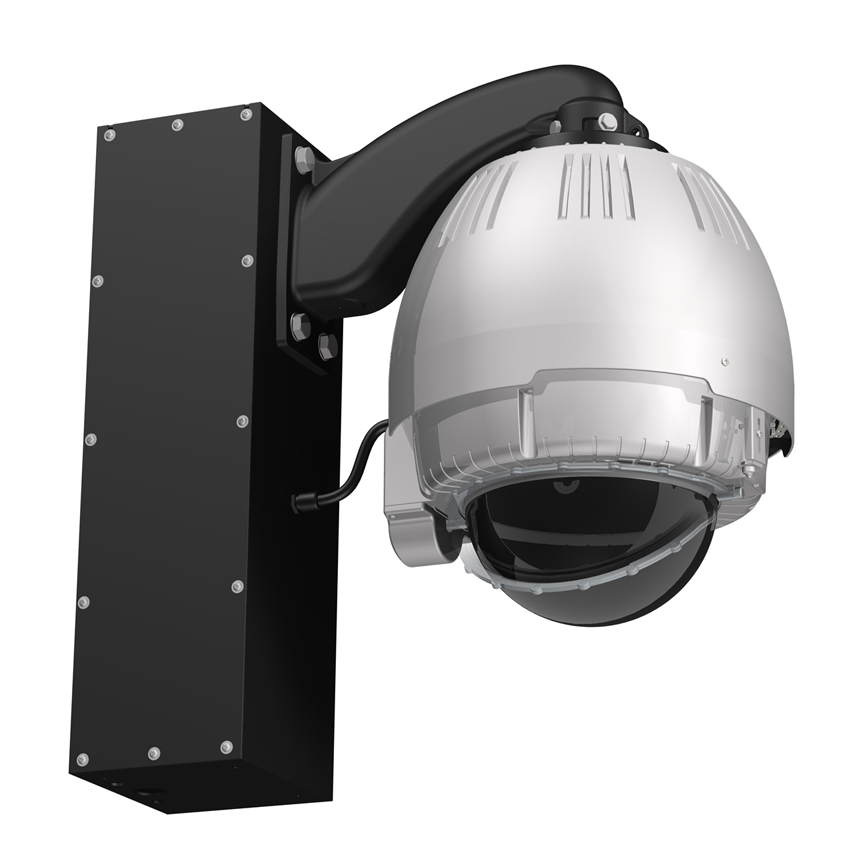

A-ODW7WW 7" WWall Mount W Type

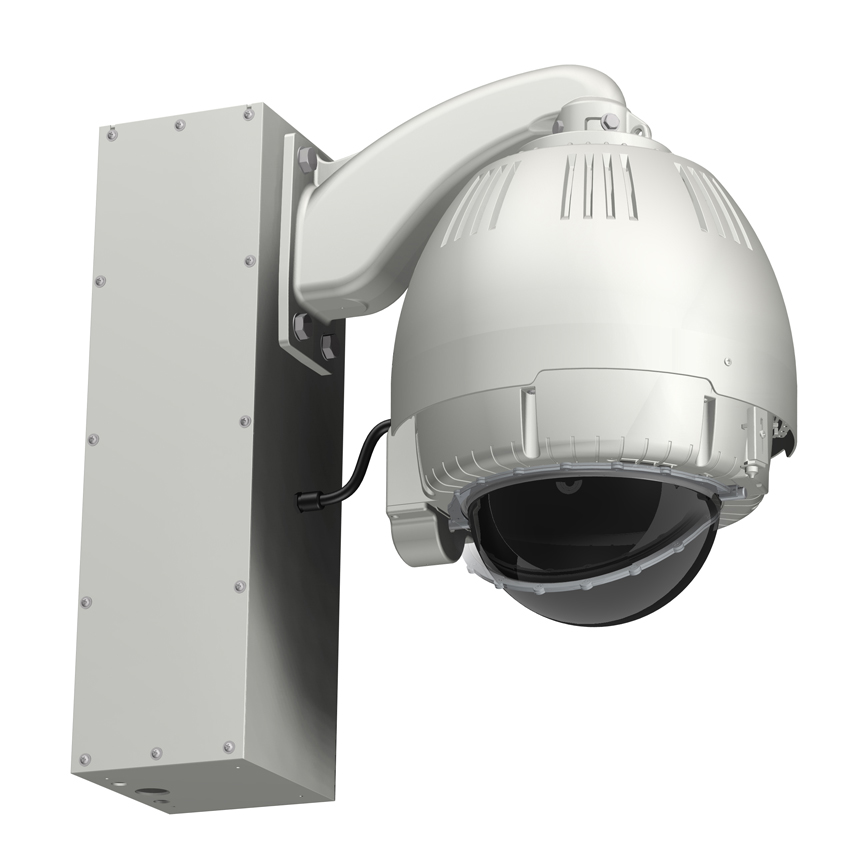

A-ODW7WW (OW)

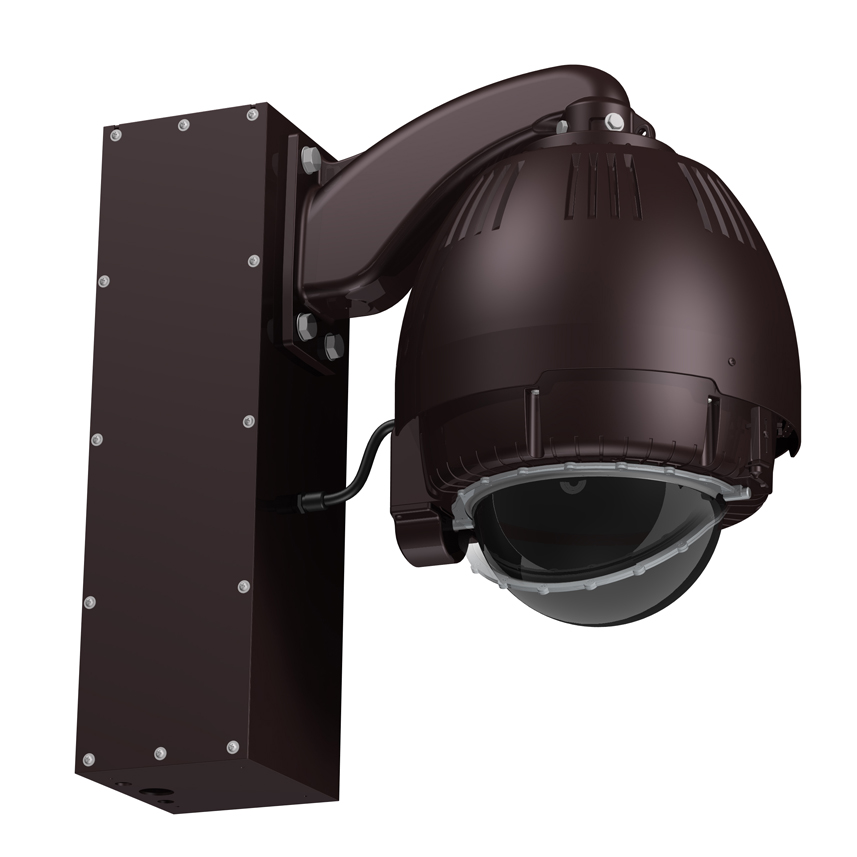

A-ODW7WW (DB)




Otional Items

A-BK3 Pole Mount Adapter
iSUS304j A-BK3S
A-BK3S(OW)
A-BK3S(DB)
Blac
Off-white
Dark Brown

iAluminumj A-BK3
A-BK3(OW)
A-BK3 (DB)
Blac
Off-white
Dark Brown

Note 2 pcs of Pole Mount Adapters are required for Washer box.


A-CM3 Corner Mount Adapter
iAluminumj A-CM3 TC
A-CM3(OW)
A-CM3(DB)
Blac
Off-white
Dark Brown

iOrdinary Paintj A-CM3
A-CM3(OW)
A-CM3(DB)
Blac
Off-white
Dark Brown

Note 2 pcs of Pole Mount Adapters are required for Washer box.

A-RCP7CHC
A-RCP7THC
Replacement Hard Coat Capsule


@A-RCP7CHCiClearj
@A-RCP7THCiTintedj


A-WPARM1 Replacement Wiper Arm & Blade Kit

–1pc of Wiper Arm & extra Blade Kit


A-WPBLD2 Replacement Wiper Blade Kit

–2 pcs included


A-HPUMP1 Hand Pump for supplying washer fluid




A-WTUBE15M Washer Fluid Supply Tubei15‚ Lengthj

For Pole Mount, 10mm width Stainless Belt(20pcs)
For Wall Mount, Tubing Holders for Screw(Not Provided)
M4 or 6-32 size(30pcs)


A-WTUBE7M Washer Fluid Supply Tubei7‚ Lengthj

For Pole Mount, 10mm width Stainless Belt(10pcs)
For Wall Mount, Tubing Holders for Screw(Not Provided)
M4 or 6-32 size(15pcs)


A-WCPU1 CPU PCB Unit for Wiper Only Type





A-WCPU2 CPU PCB Unit for Wiper/Washer Type


A-PS2412 24VAC-12VDC Converter


A-GRMT1 Wiper Gear & Motor Unit
(with Housing/without Capsule)

EW-5T12 Washer Tank and Motor Unit


A-SW1000L Safety Wire for Ceiling Mount Housing Type BCDE
Length: Approx. 1000mm=39"
You can install Safety Wire on top of Ceiling Mount Housing to prevent it from dropping.


* In case of Wall Mount Type W and A, this safety wire is already included as standard accessory.
* Model A-SW1000L does not include upper housing unit(Safety wire only).
